2D DRAWING → 3D CAD

SEND YOUR DRAWING

PDF, DWG, DXF, sketch, or technical drawing.

I BUILD THE MODEL

Accurate, clean, and manufacturing-ready.

YOU GET USABLE CAD

STEP, IGES, STL, or native file format you need.

FAST TURNAROUND

Most projects completed within 1-2 business days.

From 2D Information to Usable 3D CAD

You may already have everything needed to make the part—you just don’t have the 3D model. I can take dimensioned drawings, PDFs, DWGs, DXFs, sketches, and other technical information and turn them into clean, editable 3D CAD.

• Individual mechanical parts
• Brackets, plates, housings, and components
• Parts for CNC machining or fabrication
• Existing designs that need a modern 3D model

CAD You Can Actually Use

Depending on your needs, I can provide STEP, IGES, STL, native CAD, and PDF files.

The model is built to be useful for the next step—manufacturing, prototyping, assembly, design changes, or documentation.

From 2D Drawings to 3D CAD Models

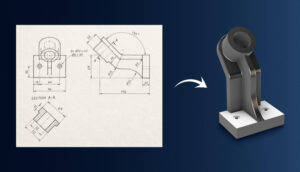

Pivot Support Bracket

A machined/formed support featuring a cylindrical pivot boss, mounting base, and reinforced structural ribs.

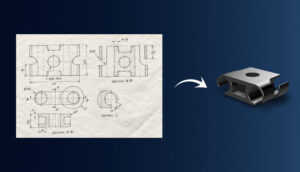

Conduit Support Bracket

A formed sheet-metal bracket designed to support and retain round conduit, featuring rolled side supports and a central mounting hole.

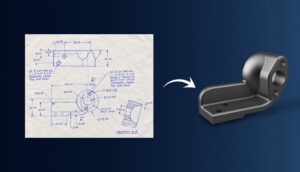

Machined Socket Joint

A base with mounting holes connected to an upright boss with a larger central bore and smaller alignment holes and fillets.

Have a Drawing That Needs to Become a 3D Model?

Send it over. I’ll take a look and let you know what’s involved.
